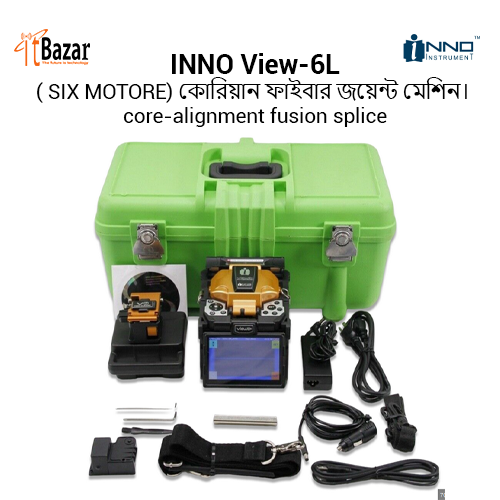

INNO View-6L Fusion Splice Core-alignment fusion splice( SIX MOTORE)

Description

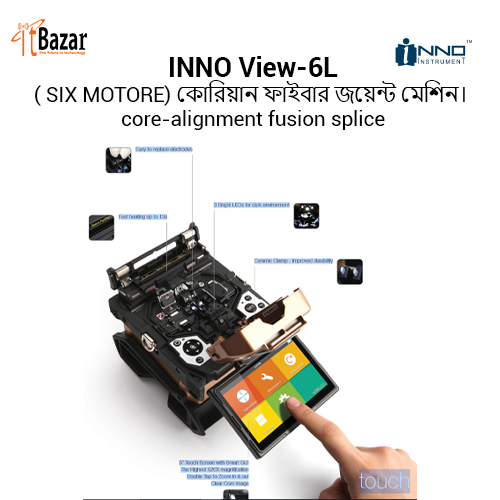

View 6L, a core-alignment fusion splicer with the world’s highest fiber image magnification rate, is the exclusive fusion splicer presented only

to main telecommunications operators. View 6L’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphical User

Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest

magnification of 520x. View 6L offers maximum work efficiency through the fast heating time of 13s. Moreover, the 3 LED lights provide bright

splice condition to the users working under dark environments. View 6L offers the most reliable work experiences with the customized solutions

for our valuable customers.

Specifications

Model View 6L

Dimension 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)

Weight 2.43KG (with battery) / 2.07KG (without battery)

Number of Fiber Single

Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber / Cable 0.25 ~ 0.9 mm

Cleaved Length Diameter: 0.125 ~ 1 mm / Cleave Length 8 ~ 16 mm

Cladding Diameter 80~150 μm

Splicing Mode Max 128 modes

Heating Mode Max 32 modes

Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)

Return Loss >>60dB

Lighting 3 White LEDs

Splicing Time Quick mode : 7 sec / Auto mode : 9 sec

Estimated Splice Loss Available

Protection Sleeve Length 20~60 mm

Heating Time FP-03 typical heating time: 13 sec

Results Storage The last 10,000 results

Tension Test 1.96~2.25N

Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s

Storage Condition 0~95% relative humidity, -40~80°C

Display 90° bi-directional view, 5.0” Color High Resolution Display

Fiber View & Magnification X, Y, XY, X/Y : 520X Magnification

Power Supply AC Input 100-240V, DC Input 9-14V

No. of Splice / Heating with Battery 4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

Operating Methods Button / Touch screen

Automatic Calibration Automatic arc calibration by air pressure and temperature

Electrode Life 5,500 arcs, can be extended by using an electrode grinder

Terminal USB2.0 / MINI USB
