Mikrotik RB3011UiAS-RM
Inhouse product

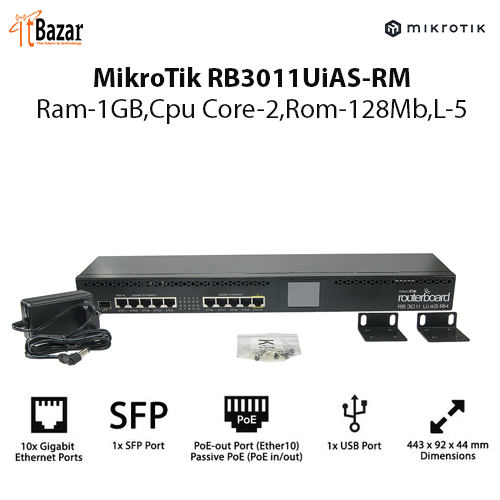

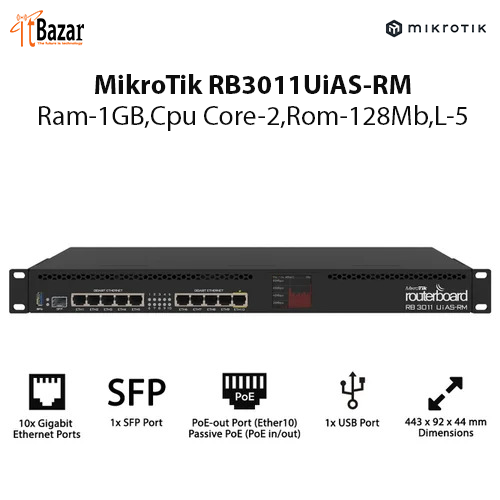

Mikrotik RB3011UiAS-RM
1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
Specifications
Details
Product code RB3011UiAS-RM
Architecture ARM 32bit
CPU IPQ-8064
CPU core count 2
CPU nominal frequency 1.4 GHz
Switch chip model QCA8337
Dimensions 443 x 92 x 44 mm
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 30 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
PoE-out
Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 600 mA
Ethernet
Details
10/100/1000 Ethernet ports 10
Fiber
Details
SFP ports 1
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
