Model Version

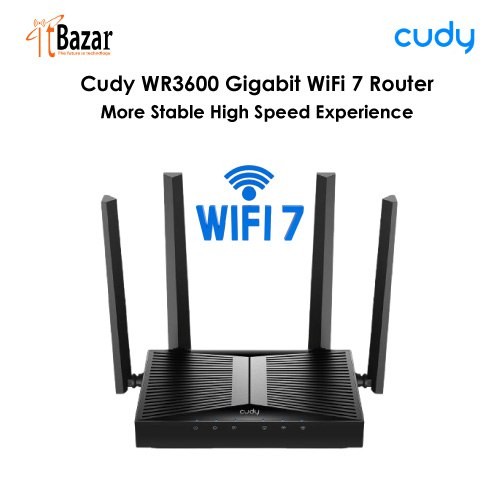

WR3600 1.0

CPU

CPU Details

2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage

Flash/ROM

128 MB (1 Gbit) NAND

DDR/RAM

512 MB (4 Gbit) DDR3L

Wireless

5 GHz Wi-Fi Speed

2882 Mbps

2.4 GHz Wi-Fi Speed

688 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

4× Fixed

FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces

Gigabit RJ45 Ports

5

Ethernet Notes

1× WAN port, the rest are LAN ports

LED

• Power
• Internet
• WAN
• LAN
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi

Physical Buttons

• WPS Button
• Reset Button

Power Input

DC Jack

Power

Power Methods

DC

DC Input

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

9W

Reliability

Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Mechanical

Installation

• Desktop
• Wall-mount

Dimension

Device:
183.3×109×38 mm
7.22×4.29×1.5 inches
Each Antenna:
175 mm
6.89 inches

Product Weight

333.5 g (11.76 oz.)

Package Content

• WR3600
• Power Adapter
• Ethernet Cable
• Installation Guide

Ordering Information

Retail Package Weight

ZH: 725.0 g (25.57 oz.)

Retail Package Dimension

330×256×60 mm
12.99×10.08×2.36 inches

Units per Carton

10

Carton Dimension

52.8×31.7×34.7 cm
20.79×12.48×13.66 inches

Carton Gross Weight

ZH: 8.1 kg (17.86 lbs)

Carton Net Weight

ZH: 7.3 kg (16.09 lbs)
